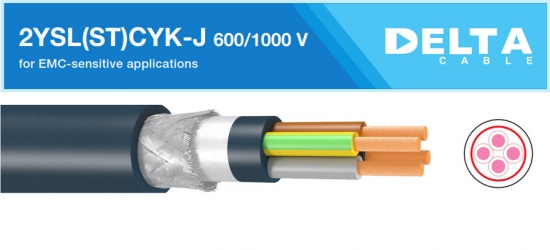

2YSL(ST)CYK-J EMC



Application

For power and control cable use in machineries,tools,production lines,conveyor belts and other electrical installations.Suitable for installations on fixed and flexible application with medium mechanical stress without tensile stress or forced movements.

Construction

Stranded bare copper conductor according to IEC 60228, class 5
Polyethylene (PE) Core insulation
Core indentification : colour coded according to HD-308
Cores are twisted in layers
PVC inner sheath
Tinned cooper wire braided screening,coverage approx.85% over alluminium foil tape (double screened)
PVC outer sheath,UV resistant,colour : black

Electrical & Technical Data

Working voltage Uo/U : 600/1000 V
Test Voltage  : 3500 VAC/5 min
Insulation Resistance                : 20 MΩ x km
Working temperature : -50C to + 700C (Moved)
: -300C to + 700C (Fixed)
Minimum bending radius : 15 x cable diameter




Cross sectionCurrent CarryingCapacitance Cond./Cond.Capacitance Cond./Shield.Outer Diameter ApproxCable Weight Approx
(mm2)Capacity (A)(ca.nF/km)(ca.nF/km)(mm)(Kg/Km)
4 x 1.5 18 70 110 14.1 297
4 x 2.5 26 80 130 15.1 361
4 x 4 34 90 150 16.6 460
4 x 6 44 110 170 18.0 572
4 x 10 61 120 190 20.5 809
4 x 16 82 130 220 23.4 1150
4 x 25 125 145 230 27.6 1657
4 x 35 155 150 260 31.1 2185
4 x 50 190 175 290 36.4 3062
4 x 70 245 180 300 41.4 4080
4 x 95 300 195 320 46.6 5344
4 x 120 345 215 340 51.3 6599
4 x 150 400 230 360 57.3 8207
4 x 185 455 240 380 63.2 10068
4 x 240 540 250 410 68.9 12180

*Above given admissible current carrying correspond to an ambient temperature of 300C.For higher temperatures the following correction factors apply.

temperature 0C 35 40 45 50 55
factor  0.94 0.87 0.79 0.71 0.61
