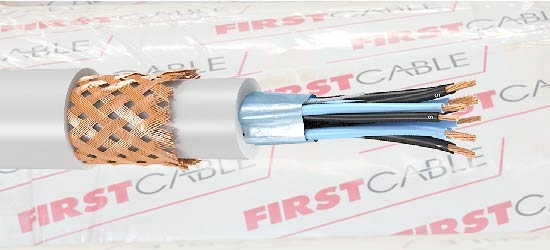

FM2X(St)CY



FM2X(St)CY
Marine Instrumentation Cable      90°C        250 V



Application

For use on instrumentation and communication system installations in ships and offshore platforms.This Cable can be installed and operated indoor and outdoor.

Construction

Conductor : Annealed bare copper conductor (tinned on request)
    Stranded to IEC 60228 class 2 (class 5 on request)
Insulation : Crosslinked Polyethylene (XLPE),Core twisted in pair/triad
Overall Screen  : Of plastic bonded aluminium mylar tape with tinned
    Copper drain wire
Bedding : Flame retardant PVC compound
Armour       : Bare Copper wire Braided
Outer Sheath : Flame retardant PVC compound,grey colour



Core identification

Pairs : Blue-Black with numbering
Triads : Blue-Black-Brown with numbering
Standard apply  : IEC 60092/350-359-376
Flame retardancy : IEC 60332-1
Flame properties : IEC 60332-3-22 (cat.A)



Working temp : -30°C to 90°C
Rated Voltage  : 250 V
Test Voltage : 1.5 KV
Bending radius : 8 x cable diameter



Construction and Electrical Data

Number of pair & nominal cross sectionOverall diameter approxNet weight approx
(mm2)(mm)(mm)
1x2x0,5 8.4 33
1x3x0,5 8.7 34
2x2x0,5 10.8 46
4x2x0.5 12.4 58
6x2x0.5 14.8 71
7x2x0.5 14.8 71
8x2x0.5 15.7 75
10x2x0.5 18.8 100
12x2x0.5 18.8 100
14x2x0.5 19.6 104
16x2x0.5
19x2x0.5 21.7 126
20x2x0.5 22.6 132
24x2x0.5 25.6 168

1x2x0.75 9.2 36
1x3x0.75 9.5 38
2x2x0.75 12.5 59
4x2x0.75 14.7 70
6x2x0.75 17.1 90
7x2x0.75 17.1 90
8x2x0.75 18.4 98
10x2x0.75 21.9 127
12x2x0.75 21.9 127
14x2x0.75 22.9 134
16x2x0.75
19x2x0.75 25.5 167
20x2x0.75 26.7 175
24x2x0.75 30.3 214

1x2x1.5 10.7 45
1x3x1.5 11.3 48
2x2x1.5 15.5 74
4x2x1.5 18.0 95
6x2x1.5 21.2 123
7x2x1.5 21.2 123
8x2x1.5 22.6 132
10x2x1.5 27.4 180
12x2x1.5 27.4 180
14x2x1.5 29.0 205
16x2x1.5
19x2x1.5 32.1 228
20x2x1.5 33.7 255
24x2x1.5 38.8 314
