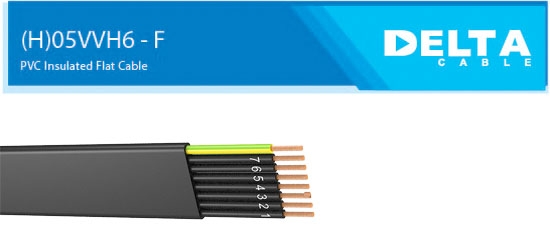

H05VVH6-F
 05VVH6 - F_001.jpg)
Application
Used as trailling cable for cranes,conveyor plant,hoisting and lifting gear,Suitable for installation in dry, moist and wet rooms.
Construction
| Stranded copper conductor according to IEC 60228,class 5 |
| PVC insulated |
| Core identification according to HD-308,up to 5 cores colour coding,7 cores above black colour with white numerals and green-yellow protective earth conductor |
| PVC outer sheath,blac colour,flame retardant to IEC-60332-1 |
Electrical & Technical Data
| Rated voltage | : Max 300/500V |
| Test voltage | : 1000 VAC/1 min |
| Insulation resistance | : 20 MΩ x Km |
| Minimum Bending radius | : 10 x cable diameter |
| working temperature | : -250C to +700C (Moved) |
| : -400C to +700C (Unmoved) |
Cross section (mm2) | Outer Diameter approx (mm) | Cable Weight approx (kg/km) |
|---|---|---|
| 4G0,75 | 4,3 x 13,8 | 110 |
| 6G0,75 | 4,3 x 18,7 | 153 |
| 8G0,75 | 4,3 x 23,5 | 196 |
| 12G0,75 | 4,3 x 34,2 | 290 |
| 18G0,75 | 4,3 x 49,6 | 425 |
| 24G0,75 | 4,3 x 66,1 | 570 |
