RTD

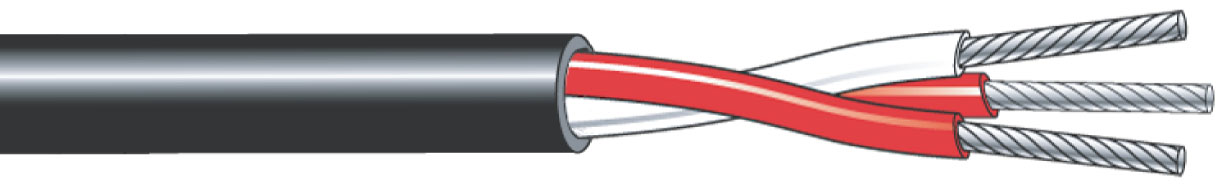

PVC Insulated ( +1050C)
| Stranded tinned copper conductor,to IEC-60228 class 5 |
| Heat resistance PVC insulated ( 1050C ) |
| Heat resistance PVC Sheathed ( 1050C ),black colour |
Cable Type | Number of Cores & Nominal Cross Section | Dimensions (Approx) | Core Colours |
|---|---|---|---|
| Pt100/Pt 1000 cable | 2x0.5 mm2 | 5.3 mm | 1 x Red, 1x White |
| PVC Insulated (+1500C) | 3x0.5 mm2 | 5.8 mm | 2 x Red, 1x White |
| 4x0.5 mm2 | 6.2 mm | 2 x Red, 2x White |

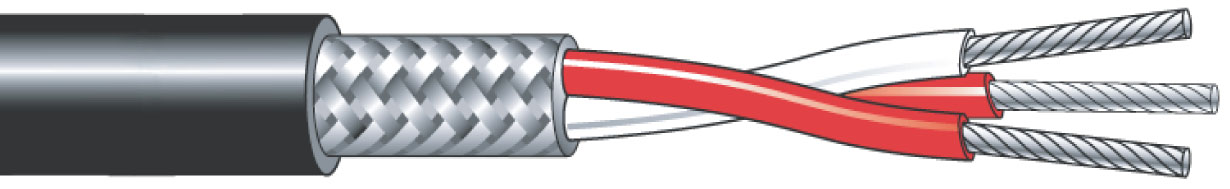

PVC Insulated ,Screened ( +1050C)
| Stranded tinned copper conductor,to IEC-60228 class 5 |
| Heat resistance PVC insulated ( 1050C ) |
| Tinned copper wire braided screen |
| Heat resistance PVC Sheathed ( 1050C ),black colour |
Cable Type | Number of Cores & Nominal Cross Section | Dimensions (Approx) | Core Colours |
|---|---|---|---|
| Pt100/Pt 1000 cable | 3x0.5 mm2 | 6.4 mm | 2 x Red, 1x White |
| PVC Insulated and screened(+1500C) | 4x0.5 mm2 | 6.8 mm | 2 x Red, 2x White |
| 6x0.5 mm2 | 7.9 mm | 4 x Red, 2x White |
